Services

GENERAL ENGINEERING

On the general engineering side, we have 25 CNC machines (lathes and milling machines), two large vertical and horizontal boring mills, wire cutting spark eroding machines, grinders, and a number of other conventional machines at our disposal.

20 CNC lathes

Max Swing = 500mm Between Centres = 1000mm Renishaw probing Auto loading C- Axis Live tooling

4 CNC Milling Machines

Max table size – 1500 x 800 x 500 Max weight = 1500kg Renishaw probing 4th Axis

Horizontal Miling

Longitudinal travel = 2200mm Cross travel = 2135mm Vertical travel = 1880mm Max weight = 30 Tons

2 Vertical Turning Machines

Max swing = 2700mm Height under cross slide = 1800mm Max weight = 25 Tons

3 Conventional Milling Machines

Max table size – 500 x 500 x 400 Max weight = 400kg

6 Conventional Lathes

Max Swing = 500mm Between Centres = 1000mm to 3000mm

Grinding machines

2 x Universal Grinders 3 x Surface Grinders 1 x Plate Grinder 2 x Tool & Cutter Grinders 1 x Centreless Grinder

Wire Cutting

500mm x 500mm x 400mm Max weight = 500kg

Spark Eroding

300mm x 400mm x 400mm Max Weight = 400kg

DIAMOND WHEELS

The third exciting piece that we have acquired is the diamond wheel division where the product is used for grinding applications. De Beers Industrial Diamonds started manufacturing wheels for the company’s own consumption in 1981 and this was continued when the rebranding took place.

Min Diameter 30mm

Max Diameter 600mm

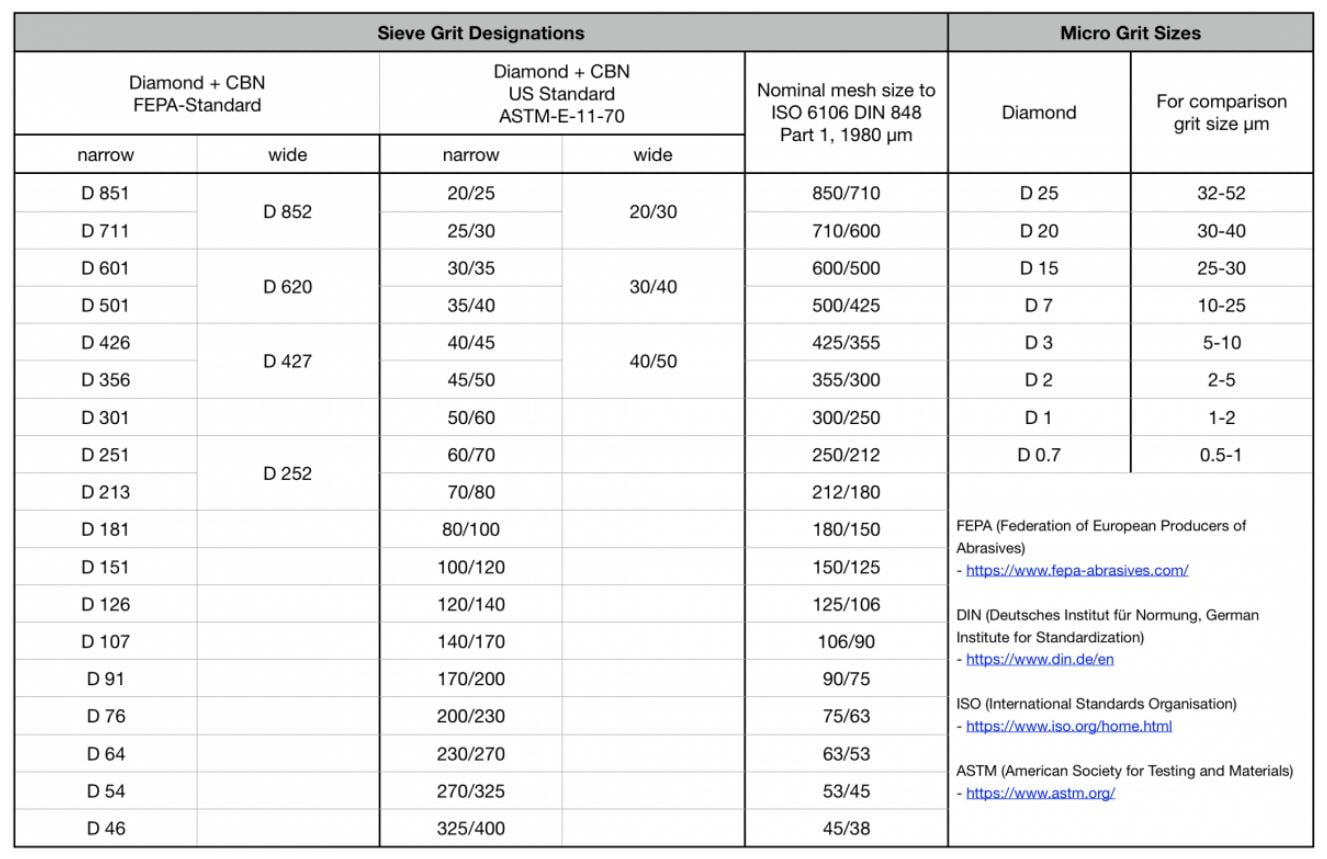

All diamond types

All diamond concentrations

CERAMIC MANUFACTURING

For example ceramics are used in disc brakes and bullet-proof vests. We have not explored making components for these products before but will be able to do so in future. For any other applications, components or products that require ceramic as the material we will be able to offer a service.

Magnesium Oxide

Aluminium Silicate

Magnesium Silicate

Sodium Chloride

Calcium Magnesium Carbonate

1100 KVA GENERATOR

Specs:

Maximum 1100 kVA Standby, 380V, 1500 RPM
2000 litre tank : 24 Hours runtime @ 75% load
Built-in AVR delivers non fluctuating power
24v Electric Starter
1100KVA Prime Silent Diesel Generator

Maximum 605kVA Standby, 380V, 1500 RPM
950 litre tank : 11 Hours runtime @ 75% load
Built-in AVR delivers non fluctuating power
24v Electric Starter
V12, Water cooled Powerful Diesel Engine
Three Phase Output
550kVA Prime Silent Diesel Generator
